Lab Working Table
Joyous Inc. offers a modular type of working / instrument table with 3 unique type of frame design with more flexibility & interchangeably as per laboratory room space.
We follow international safety & manufacturing standard while manufacturing and at the time assembly and installation work of laboratory furniture.
Application:
- In the laboratories, role of the Working & Instrument tables are fix the instruments on it, Set up of R & D equipment’s&Hot Oven. Moreover, it can be used for HPLC Machine &GC Machine with Computer set up.
- As per the International laboratory standard & for comfort working, these tables should be designed in two working height (i) Standing working Height – 900mm / 3 Ft. (ii) Sitting working height – 750mm / 2.5 Ft.
- ThisFurniture can be used in various kinds of industries like – Pharmaceutical Ind., Chemical Ind., Medical Research, School & Collages, Automobile Ind., Food / Dairy / Ice Cream Ind., Environmental Testing Etc.
Technical Specifications:
Material of Construction
- Galvanized Iron Sheet (G.I.) Construction
- Stainless Steel (SS) Construction
- Polypropylene (PP) Construction
Table Top
- Natural Black Granite
- Stainless Steel
- Phenolic Resin
- Ceramic
Frame Designs

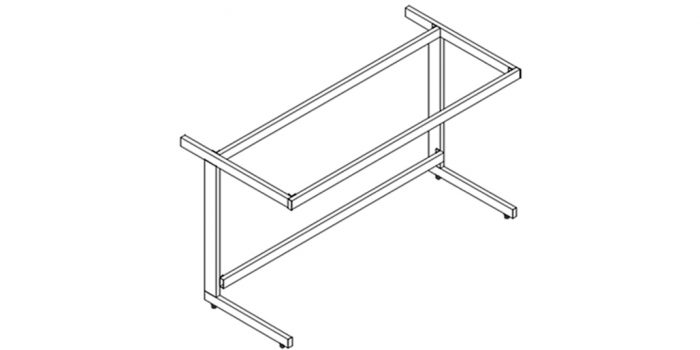

1. ‘C’ Type Frame Design
- Joyous Inc. design arig id frame construction that assures solid installation to achieve high steadiness and can with stand 250 Kg. loads on the worktop.
- Our ‘C’ Frame structure is totally made from 60mm x 30mm & 75mm x 25mm rectangular M.S. pipe with 16 S.W.G. Wall thk.
- Frame should be Epoxy powder coated as per our standard color combination or as per customer’s choice with 60-80 micron thk.

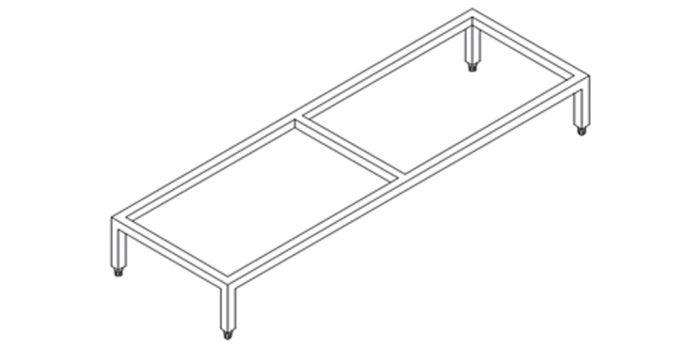

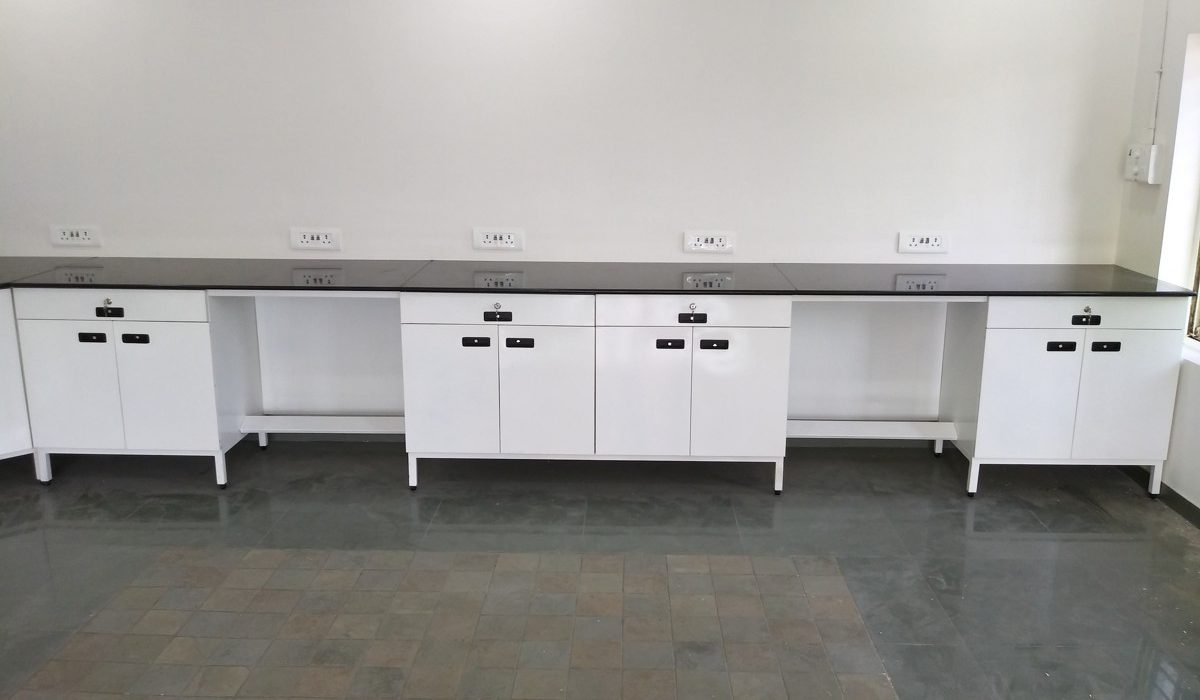

2. Pedestal Type Frame Design
- Joyous Inc. design a rigid frame construction that assures solid installation to achieve high steadiness and can withstand 250 Kg. loads on the worktop.
- Our Pedestal Frame structure totally made from 30mm x 30mm Square M.S. pipe with 16 S.W.G. Wall thk.
- Frame should be Epoxy powder coated as per our Standard color combination or as per customer’s choice with 60-80 micron thk.

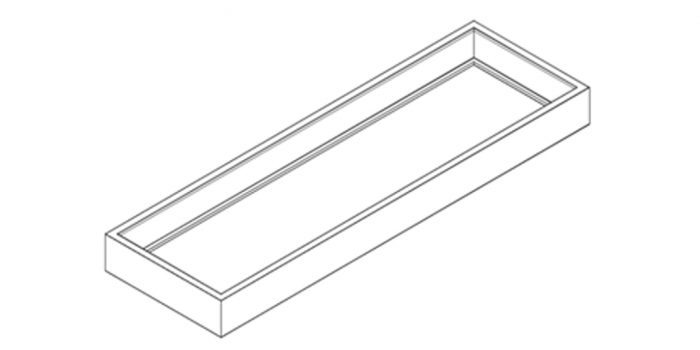

3. Plinth / Base Type Frame Design
- Joyous Inc. design a rigid frame construction that assures solid installation to achieve high steadiness and can withstand 250 Kg. loads on the worktop.
- Our Base Frame structure totally made from Galvanized Iron Sheet (G.I.) of 20 S.W.G. thk.
- Frame should be Epoxy powder coated as per our Standard color combination or as per customer’s choice with 60-80 micron thk.

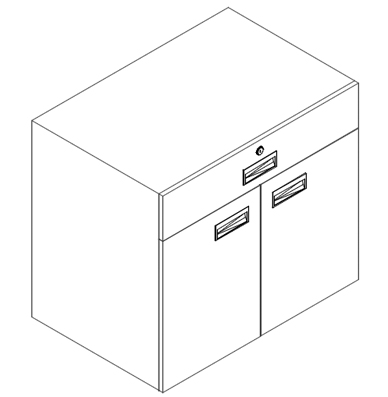

Under Storage Cabinet / Modules
- We offer variety of under storage cabinet combinations to meet exact requirement of the user in laboratory.
- Our Standard sizes (Length in mm size) of modules are: 400/450/500/600/750/900.
- Standard depth our modules is 500mm.
- We are using Hattich make Drawer Slider, Door Hinges and Lock in our storage cabinet.
- Our Under storage cabinet should made from 20 S.W.G. Galvanized Iron (G.I.) Sheet.
- Adjustable shelf can be provided with 75mm upper & down side height adjustment.
- Generally We offer following combinations like :-
- Shutter with drawer and adjustable shelf.
- Full Shutter and adjustable shelf.
- Three / Four Drawers.
Under Storage Cabinet / Modules Std. Heights per Frame Design & Table Height
| ‘C’ Frame Table Height | |
| 900mm (3 Ft.) | 900mm (3 Ft.) |
| 650mm | 500mm |
| Pedestal Frame Table Height | |
| 900mm (3 Ft.) | 750mm (2 Ft.) |
| 700mm | 550mm |
| Base Frame Table Height | |
| 900mm (3 Ft.) | 900mm (3 Ft.) |
| 750mm | 600mm |
